NVIDIA Tegra 4i LTE Processor

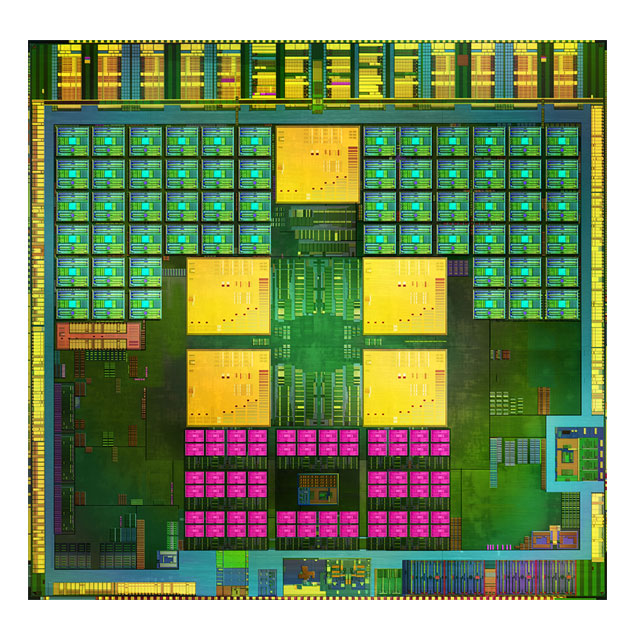

Tegra 4i die shotNVIDIA has just announced Tegra 4i, a new member in the Tegra 4 family of mobile processors. Tegra 4i features NVIDIA’s first integrated 4G LTE modem and it has been designed for smartphones that require both high-performance and very tight chip integration. The goal is to allow handset makers to build powerful designs at a lower cost and a smaller power envelope. The Tegra 4i chip won’t be as fast as Tegra 4 in an absolute sense but it offers a better performance per square millimeter, which is a very potent measure of overall efficiency. This is a potential game changer for NVIDIA which could alter the wireless industry landscape in years to come.

When Tegra 4 is not enough

As you may have seen with Tegra 3, NVIDIA won some “super-phone” contracts, and was included in many tablet designs. Despite the relative success of those products, the volume of Tegra 3 devices shipped remain a small percentage of the overall market (for more details on that, check my NVIDIA Shield is about shaping the mobile battlefield story).

One of the reason was because wireless carriers and handset makers wanted to have more cost-efficient handset designs with 4G LTE. To do that, one needs to integrate the 4G LTE modem into the main processor (or SoC) and reduce the power envelope in order to avoid shipping devices with a huge battery. The American Galaxy S3 uses a Snapdragon S4 chip, and many others made the same choice last year. With Tegra 4i and an integrated 4G LTE modem, NVIDIA can now address that same market, and this opens a new world of opportunities for the company. The fight will be very tough, but at least, NVIDIA has something on the table now.

Why is Tegra 4i different?

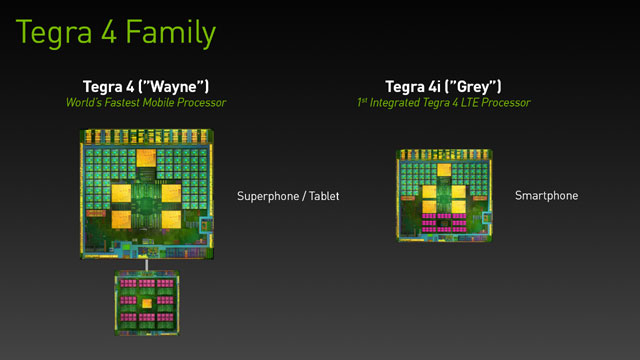

Tegra 4 Family

Tegra 4i aims to offer software features equivalent to Tegra 4, but within a smaller footprint and cost.

From a high-level, Tegra 4i runs on the same principles than Tegra 4 does: Both chips use a 4 cores + 1 battery saver core architecture. The idea is that the four main cores take on the heavy workload, and the battery saver core is there for low-intensity tasks and states. But a closer look reveals that Tegra 4i has 60 graphics units instead of 72 on its older sibling. It also uses ARM R4 CPU cores (the design is derived from the Cortex A9) that are much more nimble and power-efficient. And as we said earlier, Tegra 4i has an integrated programmable 4G LTE modem.

Tegra 4 Family  NVIDIA Chim

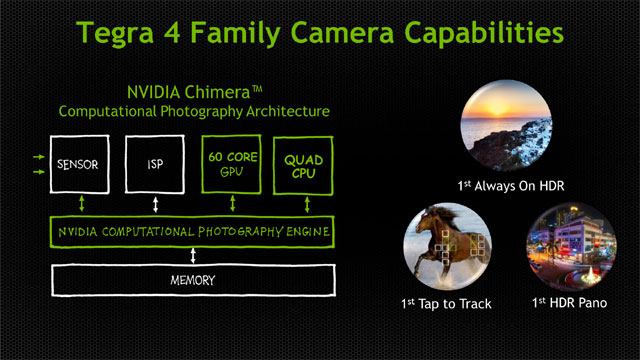

The Tegra 4 advanced camera features will be supported by the new chip

It’s all about performance per square-millimeter

The R4 cores offer better performance than the Cortex A9 used in Tegra 3, but are much smaller than the Cortex A15 featured in Tegra 4. And because R4 is so tiny (1.2 square mm) its chip design exhibits a higher than usual performance/size ratio. The bottom-line is: on paper, it is a great chip. Now, we’re really looking forward to getting our hands on it in the coming days.

What do you think? Is this how you expected Tegra to evolve?
