It did not take long for Samsung to release two new form factors of their EVO series, the mSATA and the M.2. While the mSATA version was expected, the M.2 was a pleasant surprise since that format is favored over the mSATA.

There will be no new features nor ground breaking innovations, both drives are built with the same components as the 2.5in version but housed on a smaller PCB. What it means is, expect the same great performance as the 2.5in version but with a smaller footprint.

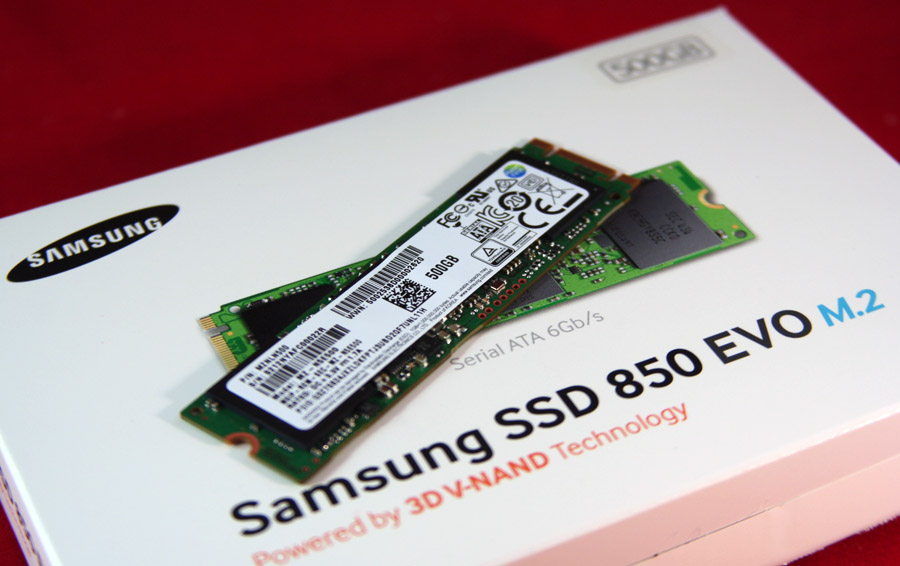

m.2-mSATA.M.2.fullshot

The mSATA version is available in 120GB, 250GB, 500GB and 1TB (1000GB) while the M.2. form factor ranges from 120GB, 250GB and 500GB. 5 years limited warranty is now the norm for the EVO line. Only the PRO version offers a 10 years limited warranty.

Specifications

mSATA 850 EVO 500GB

Usage Application Client PCs
Capacity 128GB, 256GB, 512GB, 1TB(1000GB)
Dimensions (LxWxH) (29.85±0.15) x (50.80±0.15) x Max 3.85 (mm)
Interface SATA 6Gb/s (backward compatible)
Form Factor mSATA
Controller 120/250/500GB: Samsung MGX Controller
1TB: Samsung MEX Controller
NAND Flash Memory Samsung 32 layer 3D V-NAND
DRAM Cache Memory 512MB (120GB/250GB/500GB) or 1GB (1TB) LPDDR2
Performance* Sequential Read: Max. 540 MB/s
Sequential Write**: Max. 520 MB/s
4KB Random Read (QD1): Max. 10K IOPS
4KB Random Write (QD1): Max. 40K IOPS
4KB Random Read (QD32): Max. 97K(250GB/500GB/1TB)
Max. 94K(120GB)
4KB Random Write (QD32): Max. 88K
Weight Max. 8.5g (1TB)
Power Consumption Active Read/Write (Average): Max. 3.7W (1TB)/Max. 4.4W(1TB)
Idle: Max. 50mW
Device Sleep: 2mW(120/250/500GB), 4mW(1TB)

M.2 850 EVO 500GB Specifications

Usage Application Client PCs
Capacity 128GB, 256GB, 512GB
Dimensions (LxWxH) Max 80.15 x Max 22.15 x Max 0.8 (mm)
Interface SATA 6Gb/s (backward compatible)
Form Factor M.2 (2280)
Controller Samsung MGX Controller
NAND Flash Memory Samsung 32 layer 3D V-NAND
DRAM Cache Memory 512MB (120GB/250GB/500GB)
Performance* Sequential Read: Max. 540 MB/s
Sequential Write**: Max. 500 MB/s
4KB Random Read (QD1): Max. 10K IOPS
4KB Random Write (QD1): Max. 40K IOPS
4KB Random Read (QD32): Max. 97K
4KB Random Write (QD32): Max. 89K
Weight Max. 7g (500GB)
Power Consumption Active Read/Write (Average): Max. 2.4W(500GB)
Idle: Max. 50mW
Device Sleep: 2mW

Samsung SSD 850 EVO Common Features

TRIM Support Yes (Requires OS Support)
Garbage Collection Yes
S.M.A.R.T Yes
Data Security AES 256-bit Full Disk Encryption (FDE)
TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Reliability MTBF: 1.5 million hours
TBW 120/250GB: 75 TBW
500GB/1TB: 150 TBW
Temperature Operating: 0°C to 70°C
Non-Operating: -40°C to 85°C
Humidity 5% to 95%, non-condensing
Vibration Non-Operating: 20~2000Hz, 20G
Shock Non-Operating: 1500G, duration 0.5m Sec, 3 axis
Warranty 5 years limited

Pricing

Description Capacity (GB) Model $/GB
850 EVO Series mSATA 120 $79.99 $0.67
250 $129.99 $0.52
500 $229.99 $0.46
1000 $449.99 $0.45
850 EVO Series M.2 120 $79.99 $0.67
250 $129.99 $0.52
500 $229.99 $0.46

Internals and Features

The components and features of both drives are the same as the 2.5in big brother. The only real difference is the form factor. I am going to summarize the internals and features.

MGX Controller

The MGX is a dual core controller, which would be a “downgrade” compared to the three core ARM, MEX. Although per Samsung, the MGX has been optimized for low capacity model and sequential read/write and random low level QD. Which are the most relevant I/O type regarding user experience.

3 bits NAND, V-NAND

Instead of shrinking, V-NAND stacks vertical layers. By going vertical, there are now more real estates for the cells in size and in between. Which translates into more room for voltage state changes, less interference and lower programing voltage. The benefits are, less retries due to interferences, lower power consumption. The benefits are, less retries due to interferences, lower power consumption, increase NAND endurance and overall I/O performance

TLC or MLC 3 bits per cell really take advantage of the V-NAND since there are more bits cells compared to the MLC (2 bits per cell). Beside the performance increased, the endurance rating was greatly improved allowing Samsung to offer a 5 year warranty compared to the 3 years for the previous EVO generation.

TurboWrite

In my opinion, TurboWrite is very ingenious solution to provide SLC performance.

By reserving a small portion of the V-NAND as emulated SLC, that space acts as a buffer, all I/O writes perform at SLC speed. As long as the writes stay under the buffer size (buffer sizes below), write I/O should perform as SLC speed. Once the buffer is full, subsequent writes fall back to TLC performance.

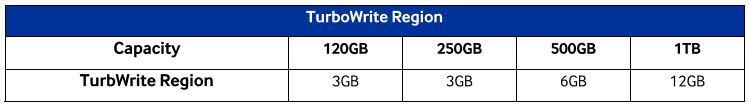

TurboWrite SLC allocation

TurboWrite SLC allocation

Outside of very specific software, it is unlikely that a home computer usage exceeds 3GB of continuous I/O writes.  In most cases, users would be able to take advantage of the SLC speed at the TLC price.

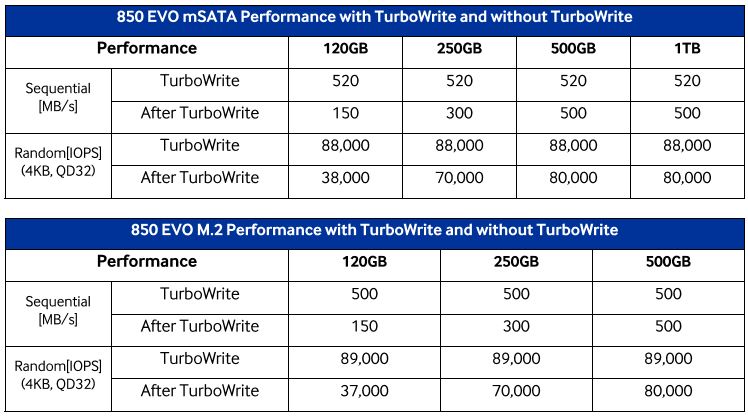

TurboWrite Performance

TurboWrite Performance

RAPID Mode

It is unfortunate that the Magician 4.6 was not available for this review. Without it, there was no RAPID feature to test. Based on the previous version, the RAPID technology uses the computer host SDRAM as an extra level of cache. The cache size is dynamic, 25% of the RAM up to 4GB, split 50/50 between read and write. The most noticeable about the write cache is it focuses on small random I/O by collating the data and writes it back in larger blocks. The read cache is persistent, meaning a copy of the data map is written to disk every so often.

Samsung 850 RAPID Mode.

Once the Magician 4.6 is released and if there is something worthwhile to mention, I would update this article. I am still hopeful for some customized options to manage the cache.

Dynamic Thermal Guard

Dynamic Thermal Guard is great feature especially when we are dealing with mobile device where air flow is premium. The Dynamic Thermal Guard throttles the controller clock if the temperature reach a certain threshold.

Power Consumption

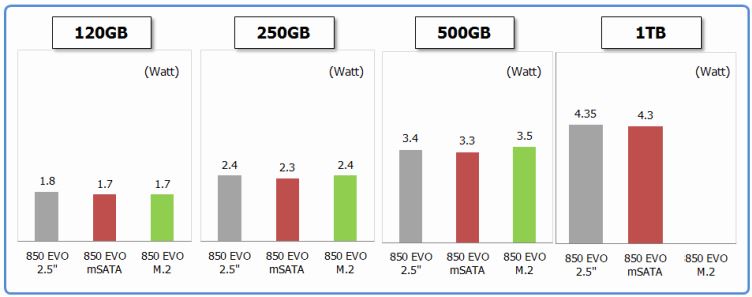

Power Consumption (Provided by Samsung).

Power Consumption (Provided by Samsung). Lower is better.

Software Package

“Samsung Data Migration” is a convenient disk cloning software by Clonix. The utility will always detect the OS drive as the source, which is a good failsafe. It only works if at least one SSD is a Samsung. At this time, it is Windows only. The latest version 2.7 puts a new restriction, it only recognized Samsung SSD as the target drive, meaning I can not chose a non-samsung SSD drive as a target. The previous version would only care if at least one drive was a Samsung product.

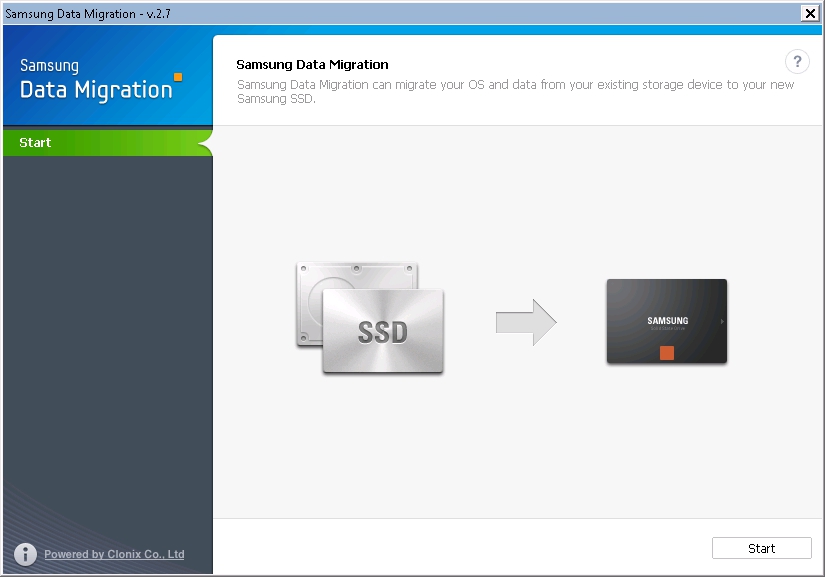

Samsung Data Migration 2.7

It is unfortunate that the Magician4.6 was not available. There are quite a few features that require the latest version for implementation.

  • Performance Optimization
  • OS Optimization
  • Over Provisioning
  • Secure Erase
  • RAPID Mode
  • Data Security.

Testing Protocol

I went through most of the popular benchmark tools, AS SSD, CrystalDiskMark, ATTO, IoMeter, Anvil’s Storage Utility v1.1.0 and PCMark Vantage. But I also used performance monitoring tools such as DiskMon and hIOmon, primarily to validate the tests. Instead of posting chart after chart, I believe, as a consumer, what is important is how the product fits the needs and not chasing after uber high numbers which are only attainable during benchmarking. For this review, I narrowed it down to Anvil’s Storage Utility, PC Mark Vantage Licensed Pro version, CrystalMark and PCMark8.

Drive conditioning: The SSDs were prepped with Windows 7 (from an image), filled with about 120GB of data total and benchmarks were run from the tested unit acting as the OS drive.

Steady state: This state occurred overtime when the drive went through enough write cycles, or to be more specific program/erase (P/E) cycles, that write performances were consistent or stable. It may take a few weeks before the SSD reaches it, depending on the computing usage, but it can be accelerated using IoMeter.

In summary, Steady State is: Written Data = User capacity x 2, at least.

Benchmark Workstation Main Components
CPU Intel Core i3-2120 Processor @3.30GHz
Motherboard ASUSTeK Computer INC. P8Z77-V LX
RAM 8,192 MB (4,096 x 2) PNY Optima DDR3 – PC3-10666
GPU NVIDIA GeForce GTS 450
OS Windows 7 Pro 64bits
Storage Driver iaStorA 12.9.0.1001
OS Hard Drive The reviewed SSD unit
mSATA Adapter mSATA To 2.5in SATA Adapter – SDADA40077
M.2 Adapter ZTC Lightning Card M.2 NGFF SSD – ZTC-EX001

What numbers are relevant in a real world usage?

Keep in mind that unlike synthetic benchmarks which perform only one specific operation at the time for a predetermined duration, seq read, then seq write then random read, and so on and so forth, real world usage paints a different picture. All four access types can occur at any time, and different transfer rates and different (I/O access) percentages. For instance, a storage subsystem on a streaming server would mostly see high seq read I/O, large block reads, with very little to none write. Looking at a database server without blob data type, we would probably see 75% random read, 20% random write and 5% random and seq write. I could either guesstimate the different ratios or figure a method to define a more accurate I/O usage baseline.

I/O Baseline

While it is entertaining to run a bunch of benchmarking tools, expecting huge numbers, the purpose of testing the units is to get a good look at how they perform under realistic desktop usage pattern. That is why I picked PCMark Vantage suite as my usage pattern. By capturing and analyzing I/O during the PCVM run, disk operations are breakdown to percentage read vs. write, random vs. sequential, queue depth and average file transfer size.

With that information, benchmarking makes more sense since all the numbers do not carry the same importance, thus some results are more valuable than others.

In summary, I/O pattern defines what I need from the device vs. what can the device do overall.

The I/O baseline process was explained in the Intel 525 mSATA review.

diskmon-chart

From the numbers, I rated the I/O usage by activity as follow: Random Read > Random Write > Seq Read > Seq Write and average file size is 128K.

To cover Queue Depth, I used hIOmon during the PC Vantage full run. There is a trial version for a week, which is enough time to build the baseline. Based on the chart below, it is obvious that a benchmark score from a QD 16 (or more) does not carry the same weight as a score from a QD 1.

mSATA-525-series-review_qd

About 95%+ of the reads/writes I/O are at or under Queue Depth 4. Although the bulk of it is at Queue Depth 2 or under.

Performance

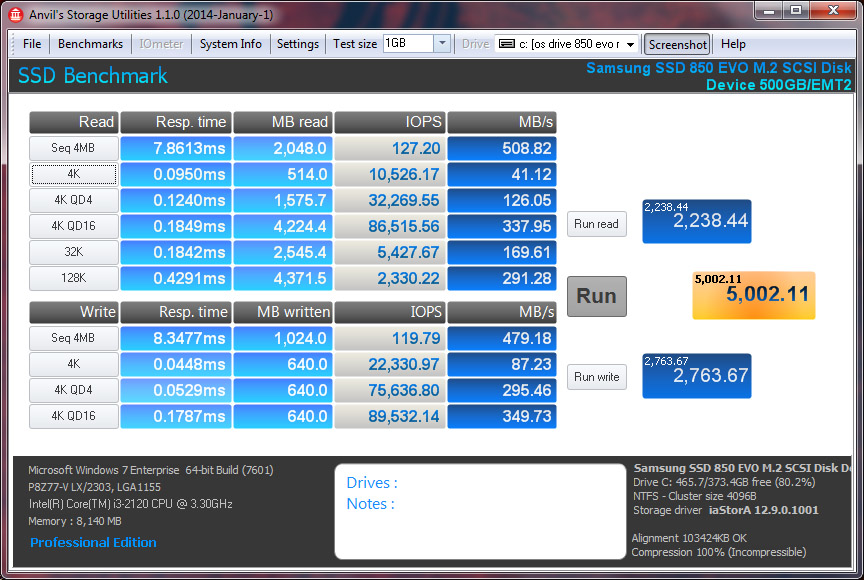

Samsung 850 EVO M.2 ASU score

Samsung 850 EVO M.2 ASU score

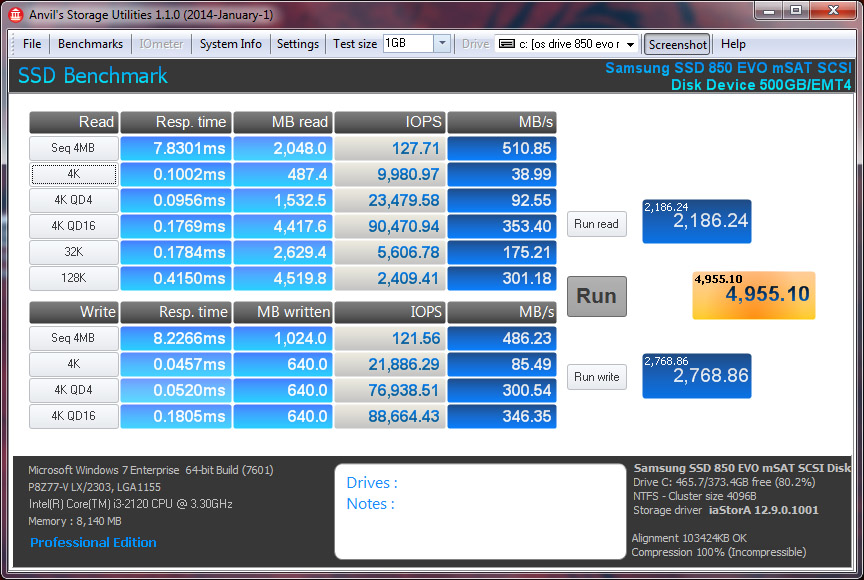

Samsung 850 EVO mSATA ASU score

Samsung 850 EVO mSATA ASU score

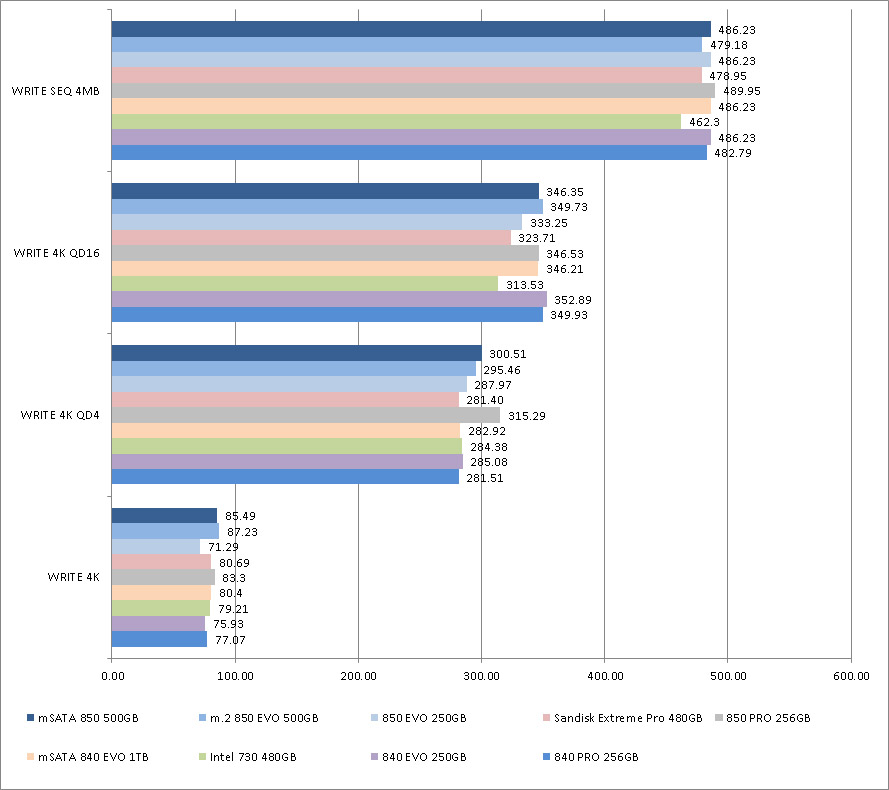

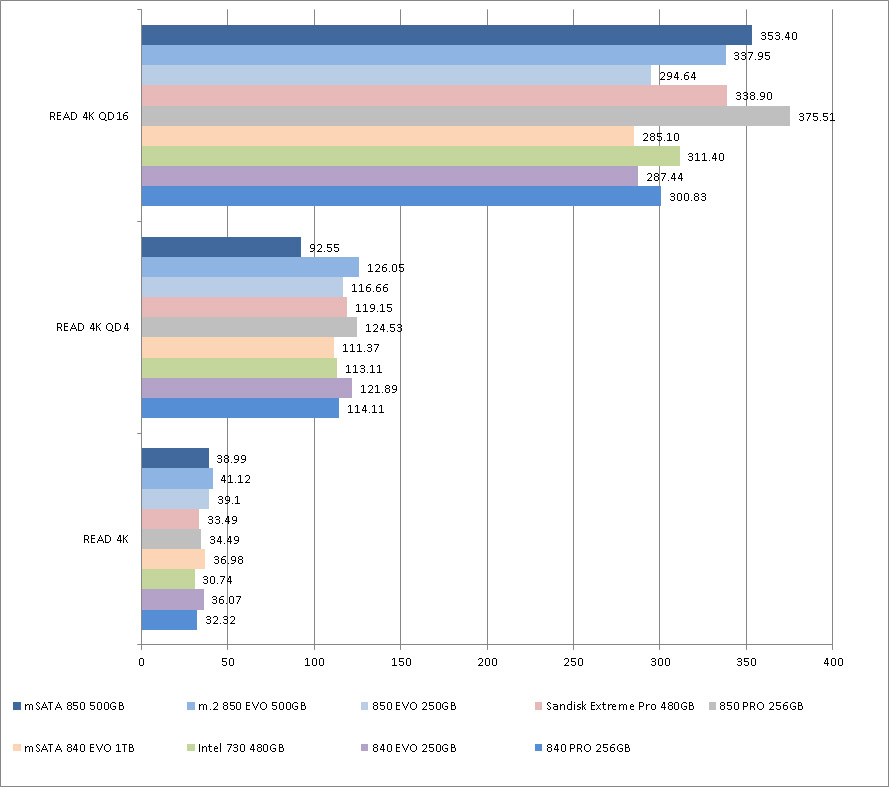

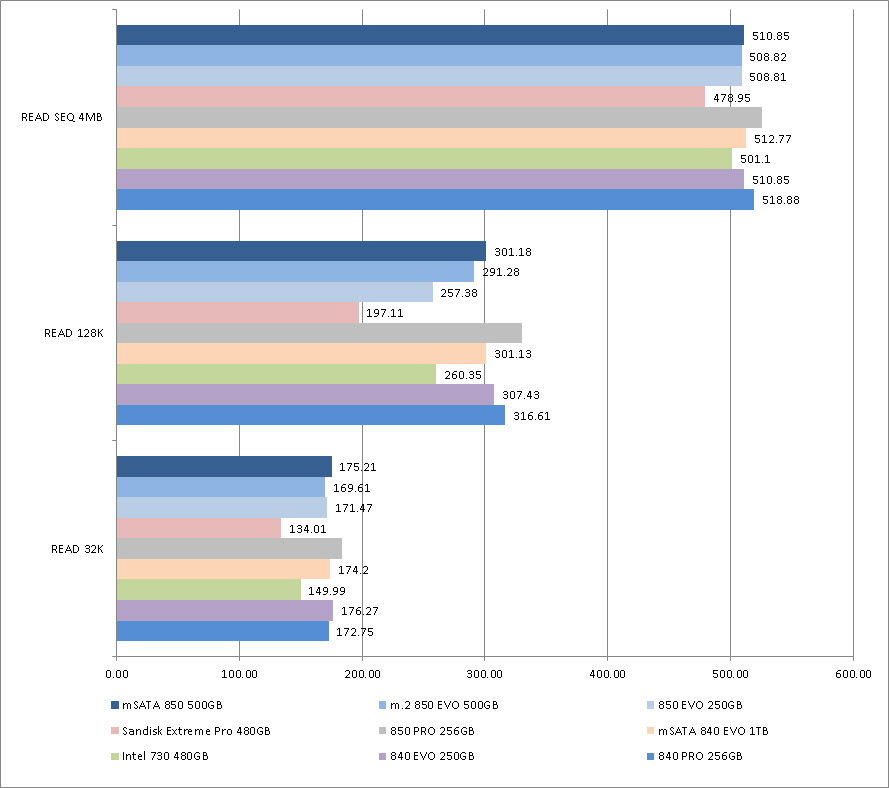

Values are in MB/s. HIgher is better

Values are in MB/s. HIgher is better

Values are in MB/s. HIgher is better

Values are in MB/s. Higher is better

Values are in MB/s. HIgher is better

Values are in MB/s. Higher is better

Overall, synthetic benchmarks shows very little difference in performance between the three form factors. If anything, the mSATA and M.2. take a slight lead compared the 2.5in. I would attribute that to a newest firmware.

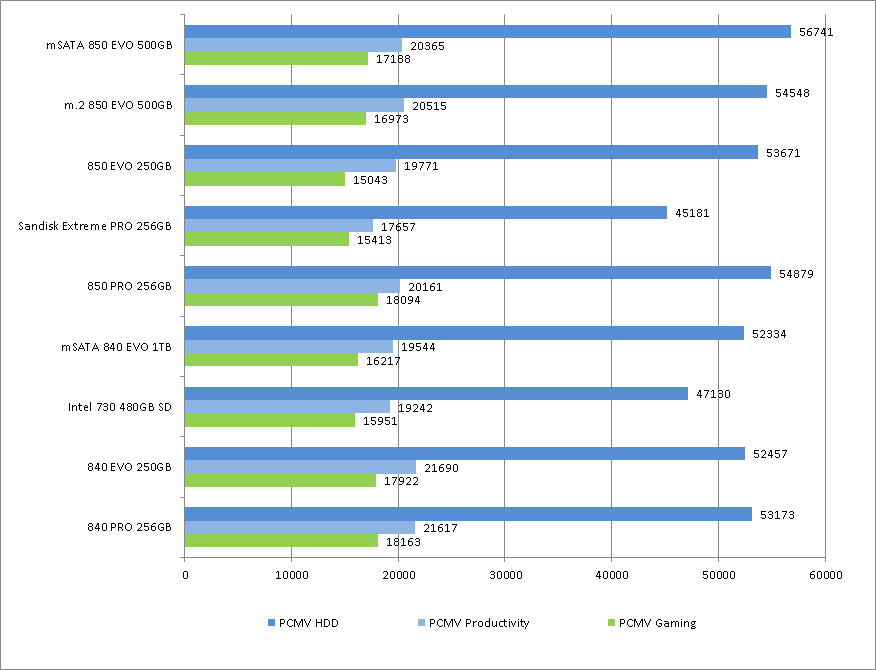

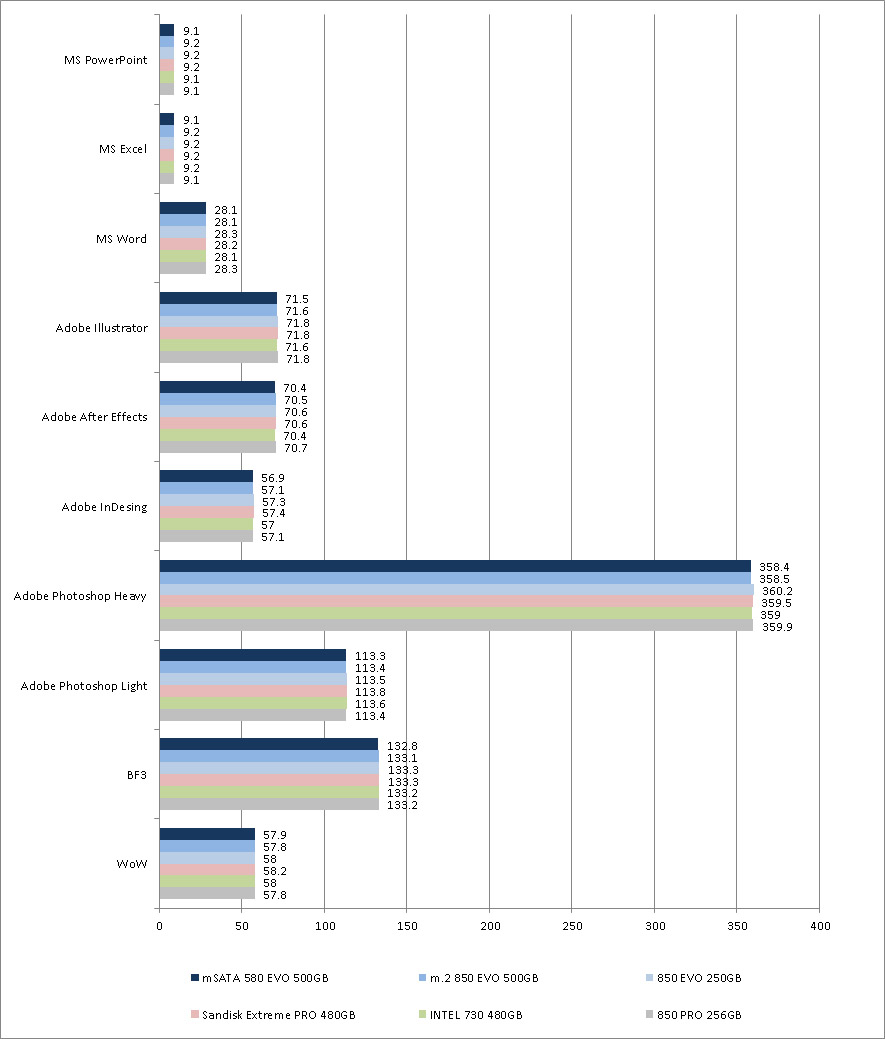

PC Mark Vantage scores. Higher is better

PC Mark Vantage scores. Higher is better

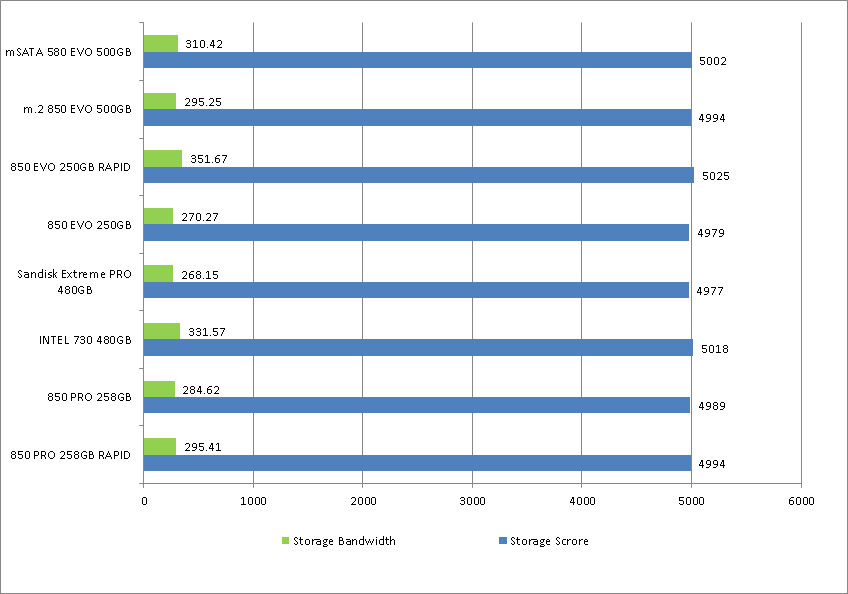

PCMark 8 Storage score. Lower is better.

PCMark 8 Storage score. Lower is better.

Storage Bandwidth score. Higher is better.

Storage Bandwidth score. Higher is better.

Traced benchmarks revealed little to no difference between all Samsung version. As long as your computing usage is similar to PC Mark 8 storage, picking an SSD will come down to the price and features.

Conclusion

The appeal for mobile device or small PC format owners is obvious, both formats offer high capacity, desktop like performance, encryption and low power consumption. The whole package is backed by a 5 years limited warranty. Who say one can not have the cake and eat it too?

"WHO SAY ONE CAN NOT HAVE THE CAKE AND EAT IT TOO?"

In this day and age, potential owner should aim for the 500GB in capacity. Priced at $0.46 per GB, the 500GB would give the buyer the best ratio performance/price/capacity.

m.2-mSATA.mSATA.full.shot

If you are in the market for either drive, you can’t go wrong with one of these.
